Touch and Go (non North America, 11/Nov/2005, checksum 056AA304)
| dumper | Corrado Tomaselli, f205v |
| date | 18/10/2005 |
| emulator | MAME 0.101u3 - MAME 0.102 |
| dev | Corrado Tomaselli |
| name | touchgonnac on Arcade Database |
| description | Touch and Go (non North America, 11/Nov/2005, checksum 056AA304) |
| year | 2005.11.11 |
| manufacturer | Gaelco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000P16 | 16.000MHz | ic48 | 16/32-bit Microprocessor - main |
| 1x | custom GAE1-501 | ic57 | main | |
| 1x | DS5002FP | 16.000MHz | ic47 | Secure Microprocessor Chip |
| 1x | TDA1543 | ic31 | D/A Converter (DAC) - sound | |
| 1x | LM324N | ic19 | Quad Operational Amplifier - sound | |
| 1x | TDA1552 | ic1 | Audio Amplifier - sound | |
| 1x | oscillator | 32.000MHz | xtal1 | |
| 1x | oscillator | 40.000MHz | xtal2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | NM27C040Q | 1.ic63 2.ic64 | dumped |
| 2x | MASKROM 1Mx16 | tg_ic66.ic66 tg_ic69.ic69 | not dumped DIP42x600mil 16Mbit MASK read as 27C160 [in byte mode] (Graphics) |
| 2x | MASKROM 1Mx32 | tg_ic65.ic65 tg_ic67.ic67 | not dumped DIP42x600mil 32Mbit MASK read as 27C332 (Graphics & Sound) |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | KM428C256J-6 | ic53,ic54,ic55,ic56 |
| 2x | MT5C6408-20 | ic32,ic33 |
| 4x | CY7C199-20PC | ic49,ic50,ic75,ic76 |
| 1x | MB84256A-70L | ic34 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TIBPAL20L8-25CNT | ic39 | read protected |
| 1x | TI F16R8-10CN | ic27 | read protected |
| 1x | TIBPAL16L8-25CN | ic30 | read protected |
Others
1x JAMMA edge connector
1x 6 legs connector (JP1)
2x 15 legs connector (JP2,JP3)
1x 4 legs connector (JP4)
1x 5 legs connector (JP5)
1x 50 pins connector from main board to ROMs board
2x trimmer (volume)(P1,P2)
1x battery 3V
Notes
main PCB is marked: "gaelco REF: 950510-1 MADE IN SPAIN" and "(C) ALL RIGHTS RESERVED" on component side
main PCB is marked: "SOLD" and "E193E" on solder side
ROMs PCB is marked: "61195 VIPROTEAM-TOUCH" on component side
ROMs PCB is marked: "61195" on solder side
This is the same PCB revision (950510-1) as already documented in MAME source gaelco2.c, with Gaelco custom chip 501 instead of 506
update 10/11/2005: we found another PCB for the same game, better description and dump
update 20180501: complete description, redump and pics
update 20180505: CPUs clock
Files
-

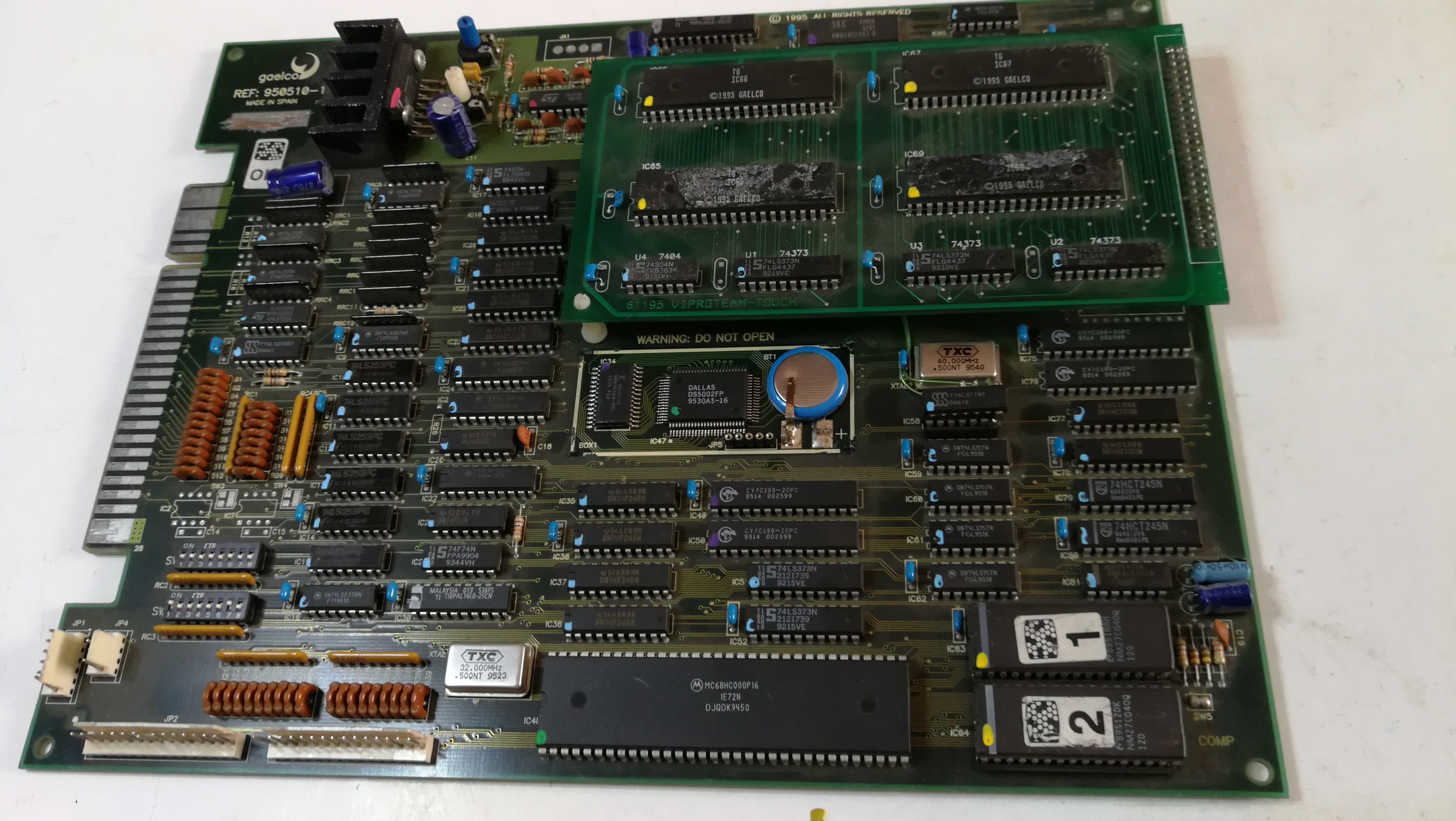

assembled PCBs component side -

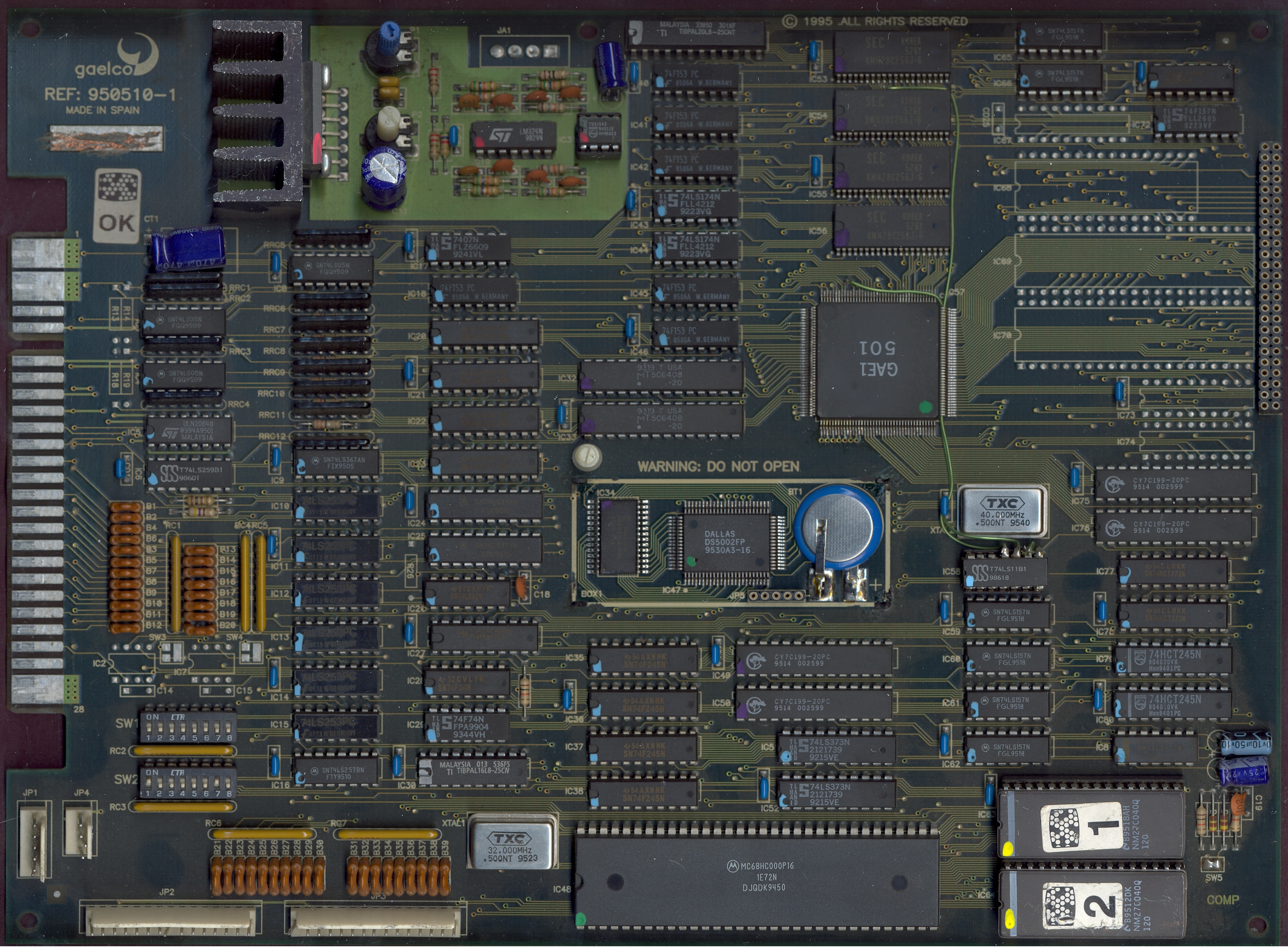

main PCB component side -

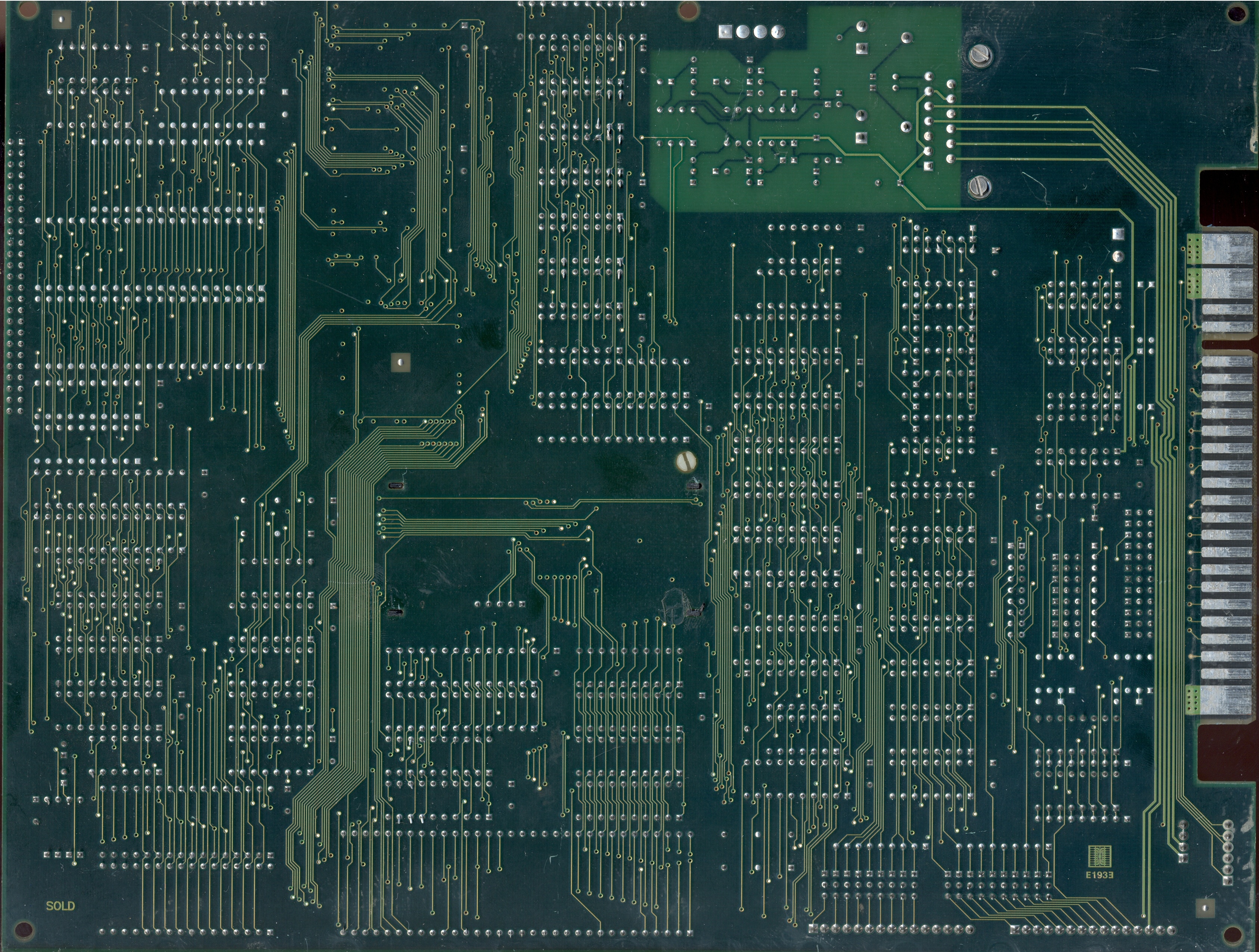

main PCB solder side -

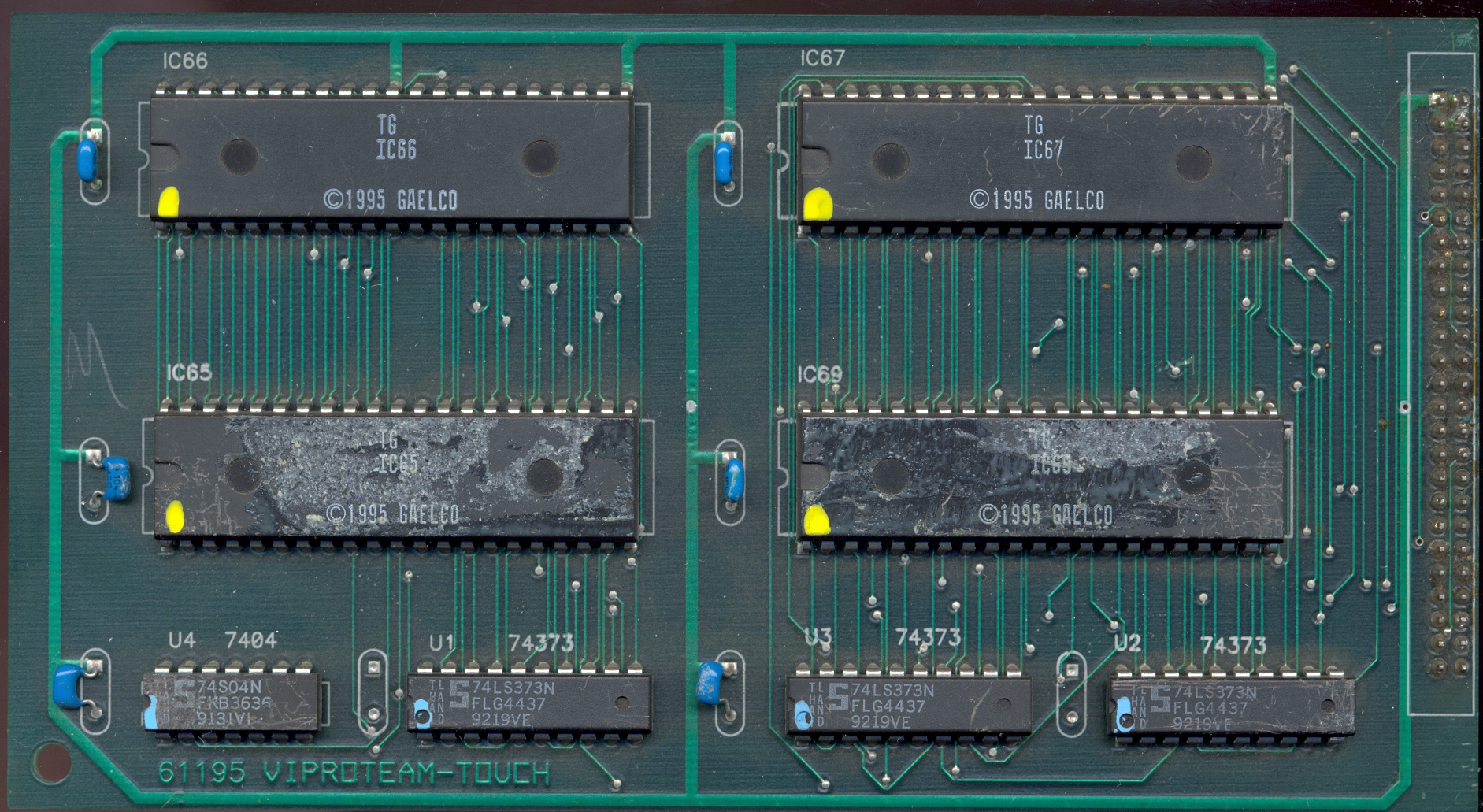

ROMs PCB component side -

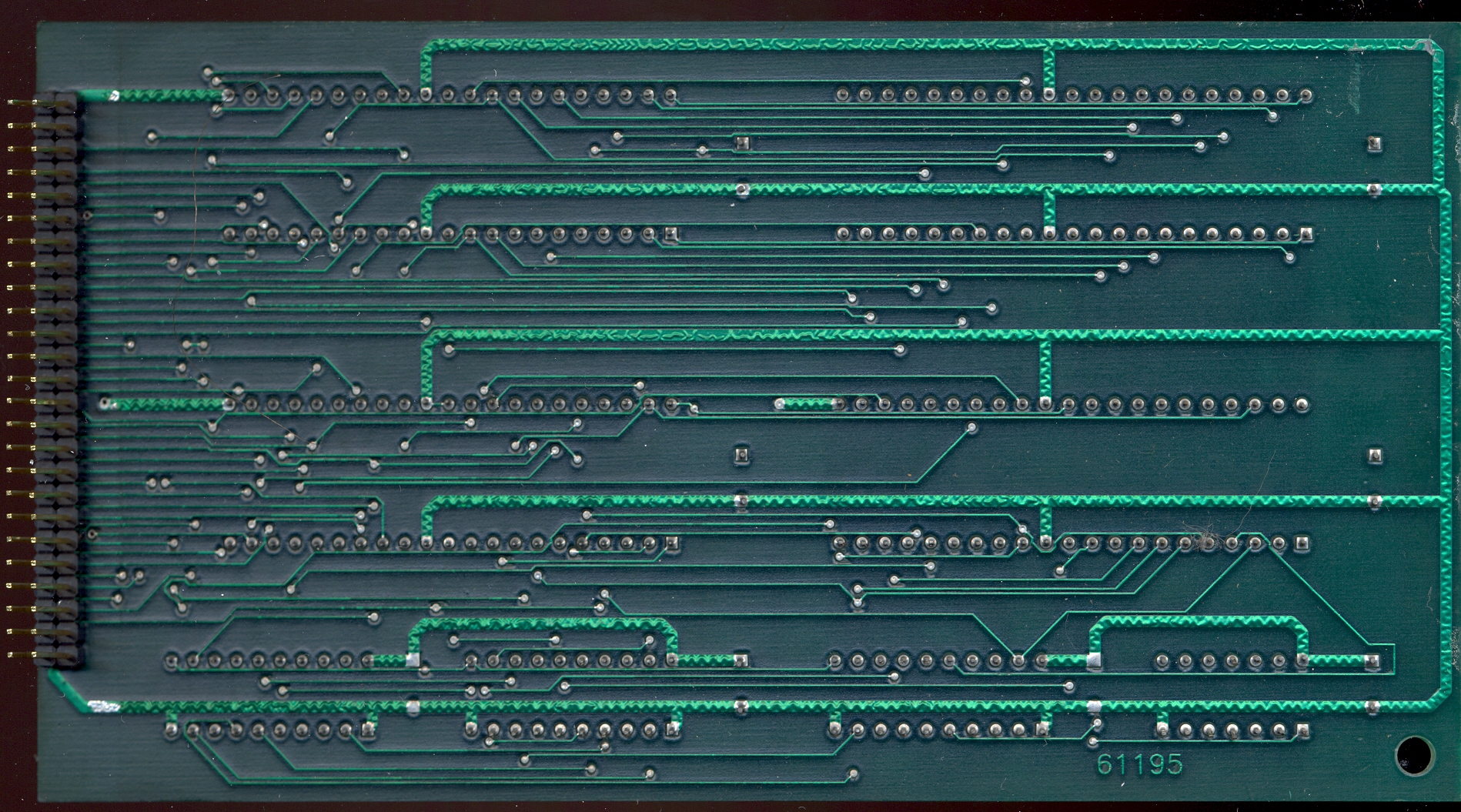

ROMs PCB solder side -

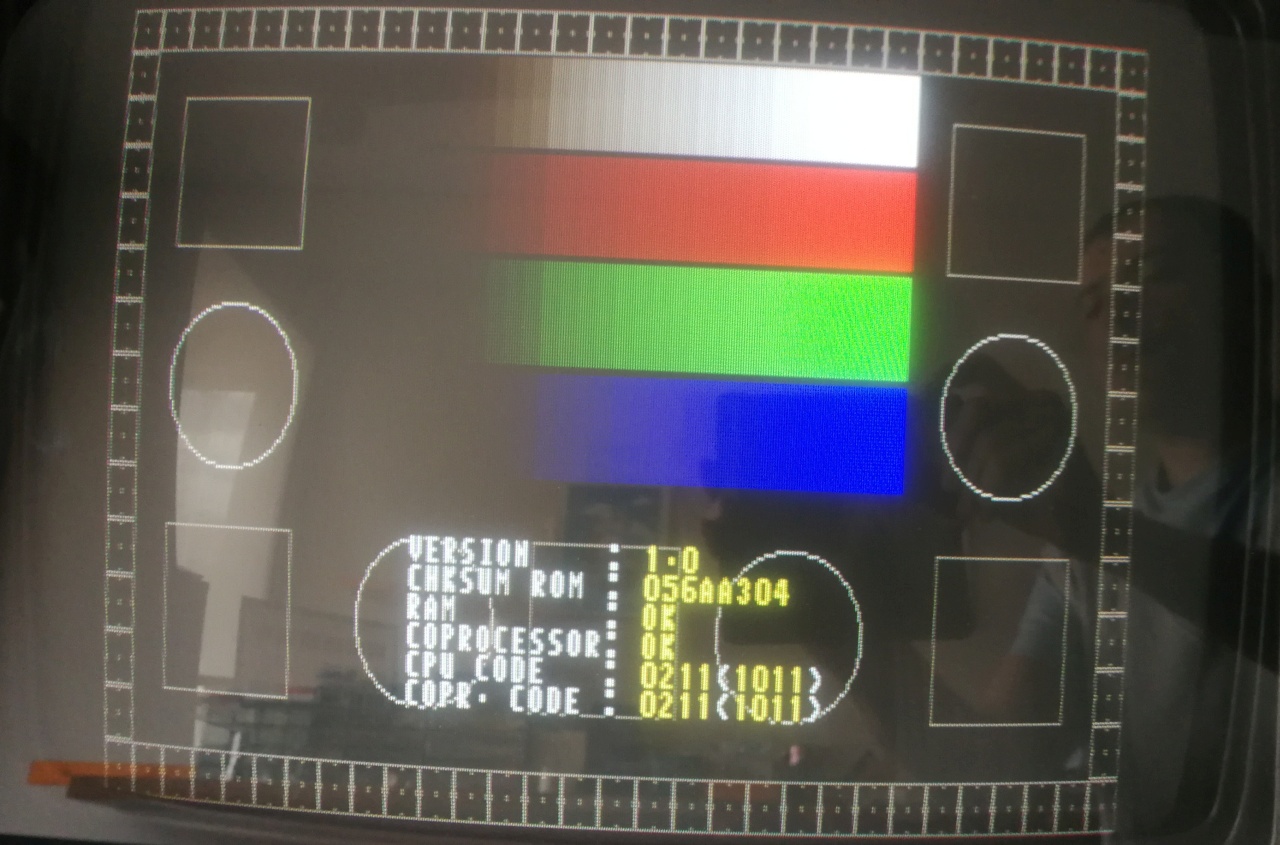

boot screen -

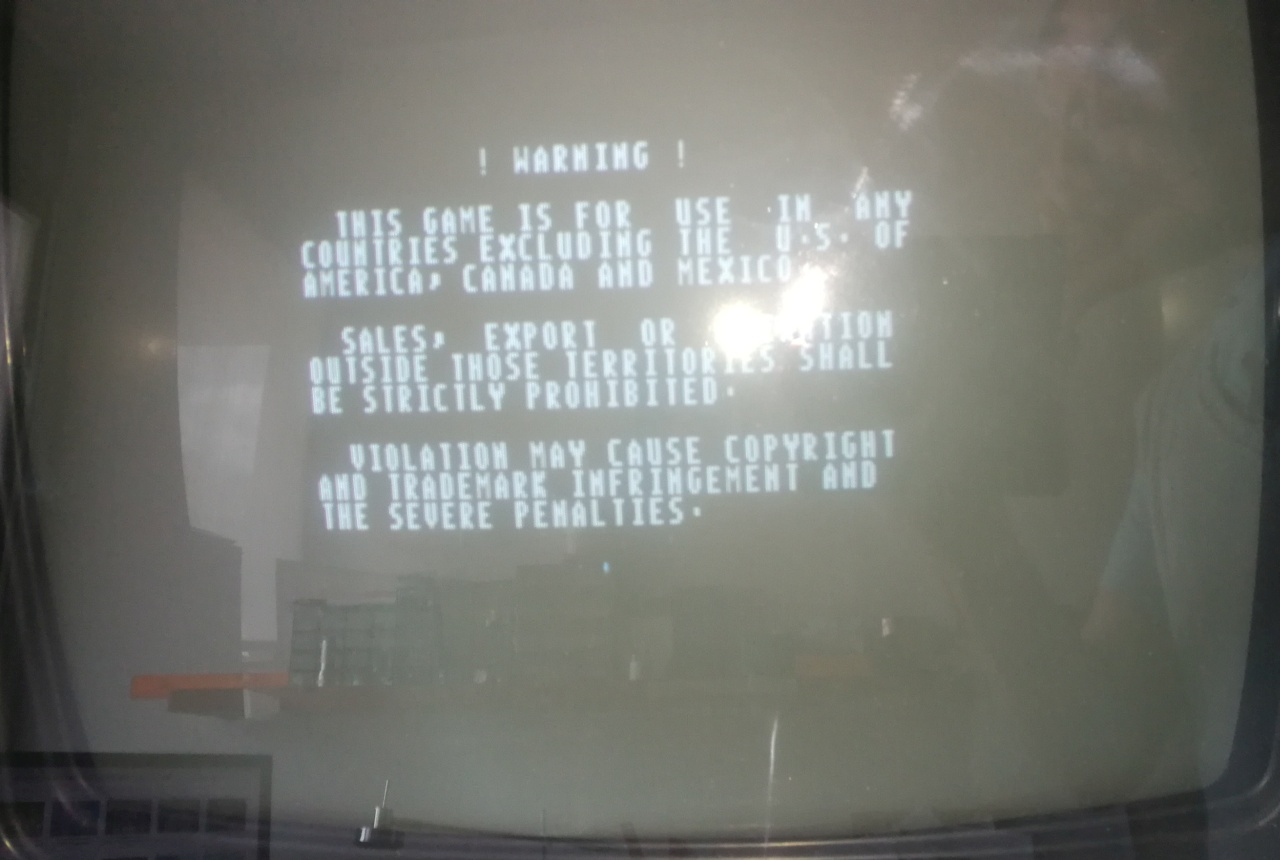

disclaimer -

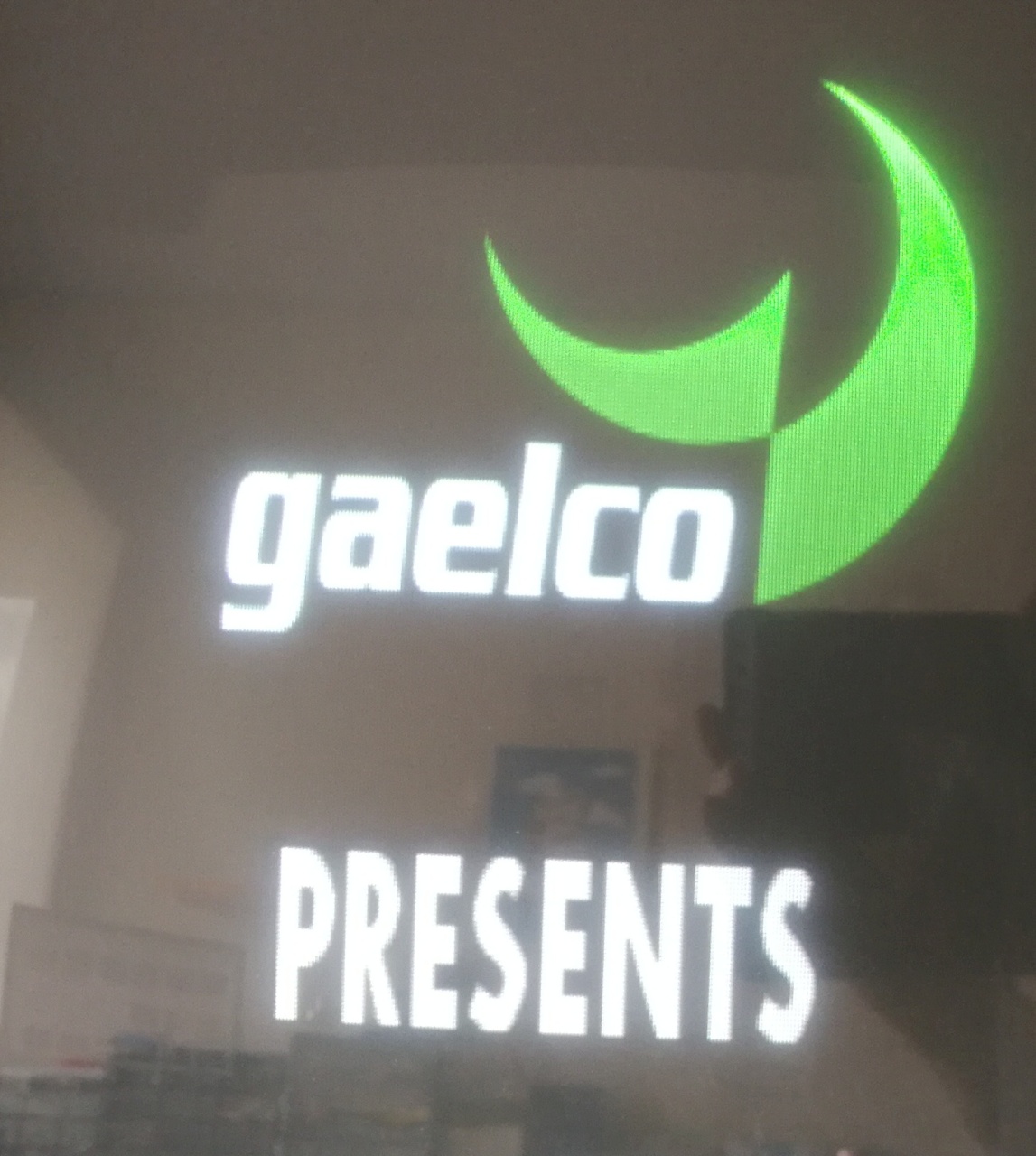

title 1 -

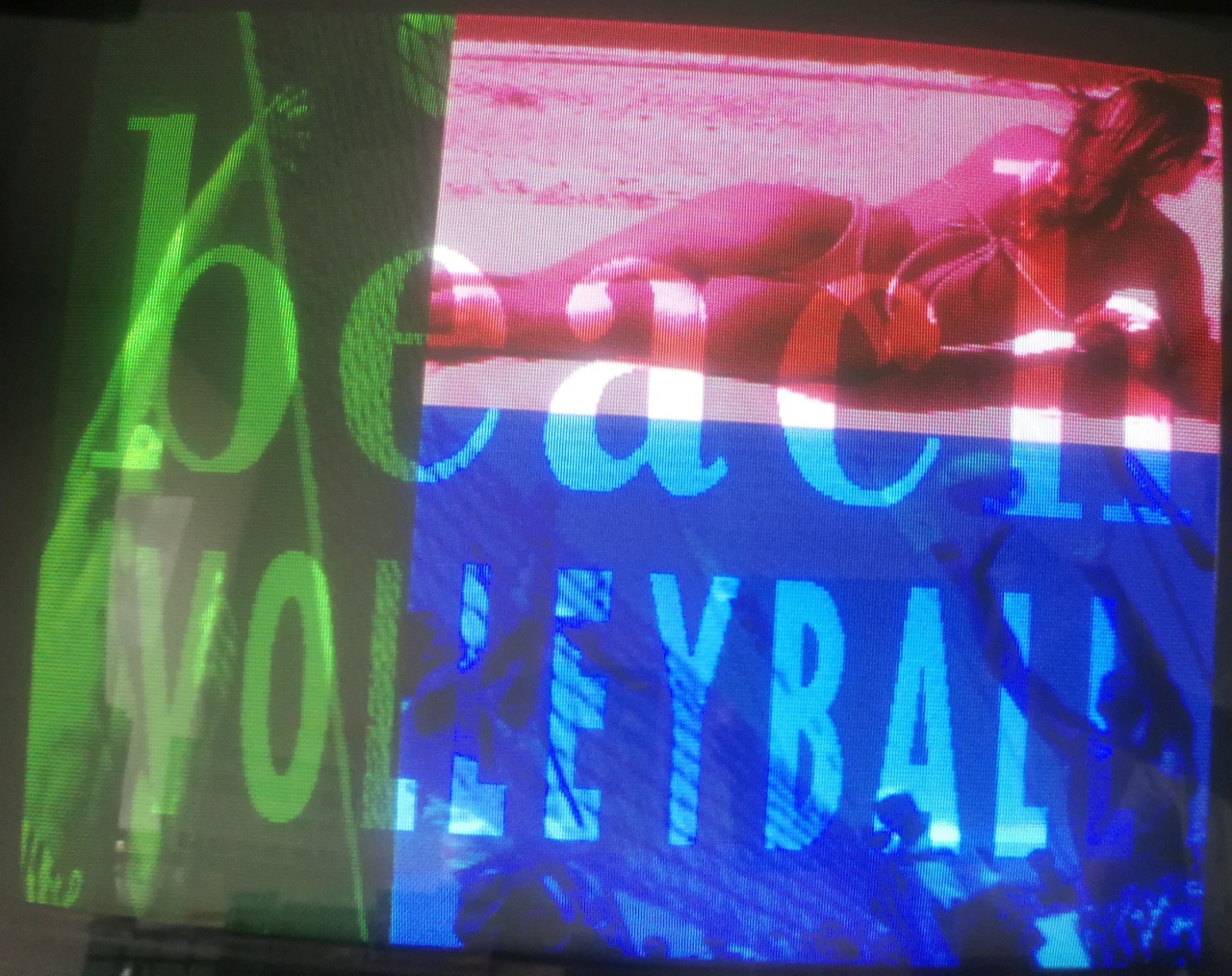

title 2 -

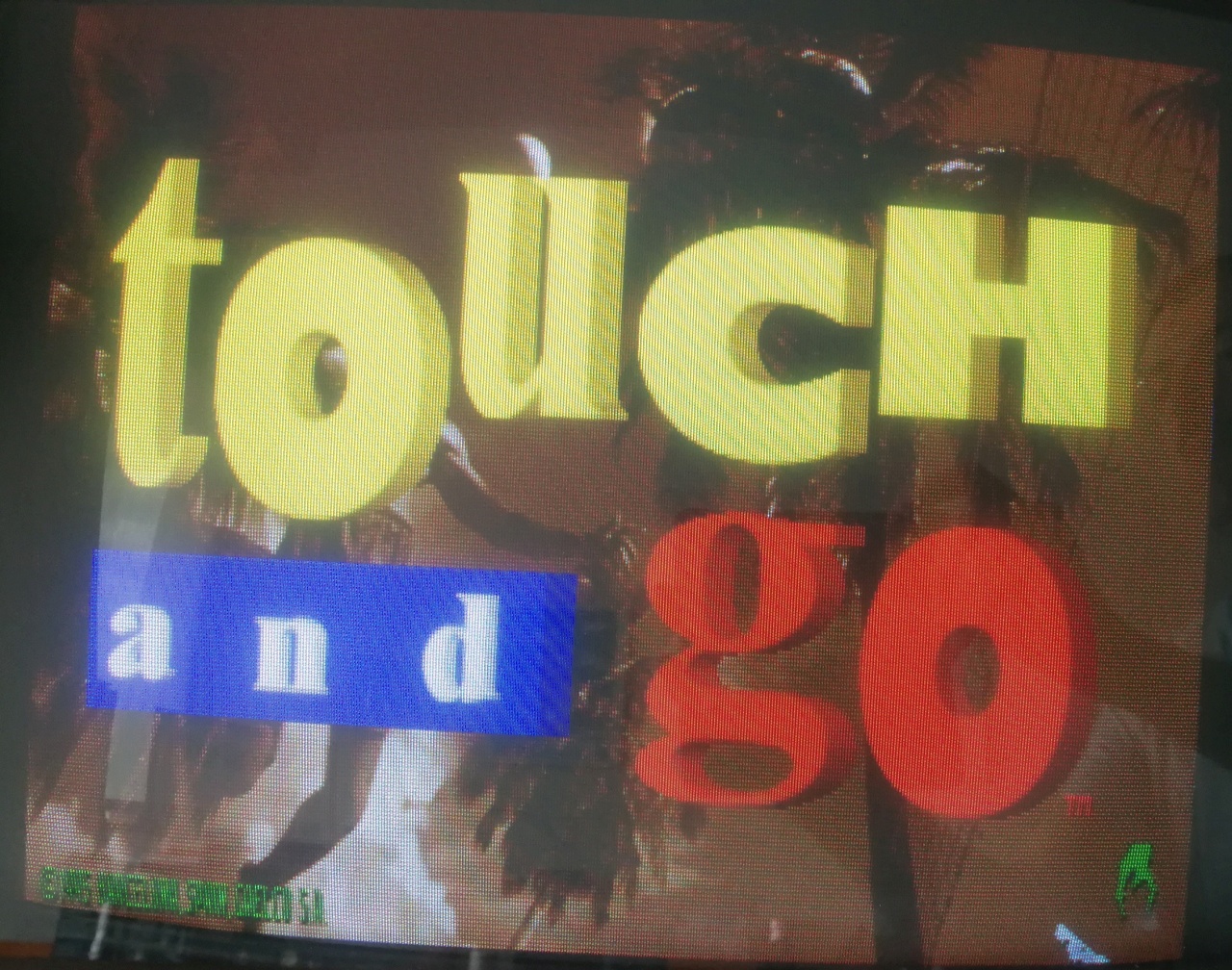

title 3 -

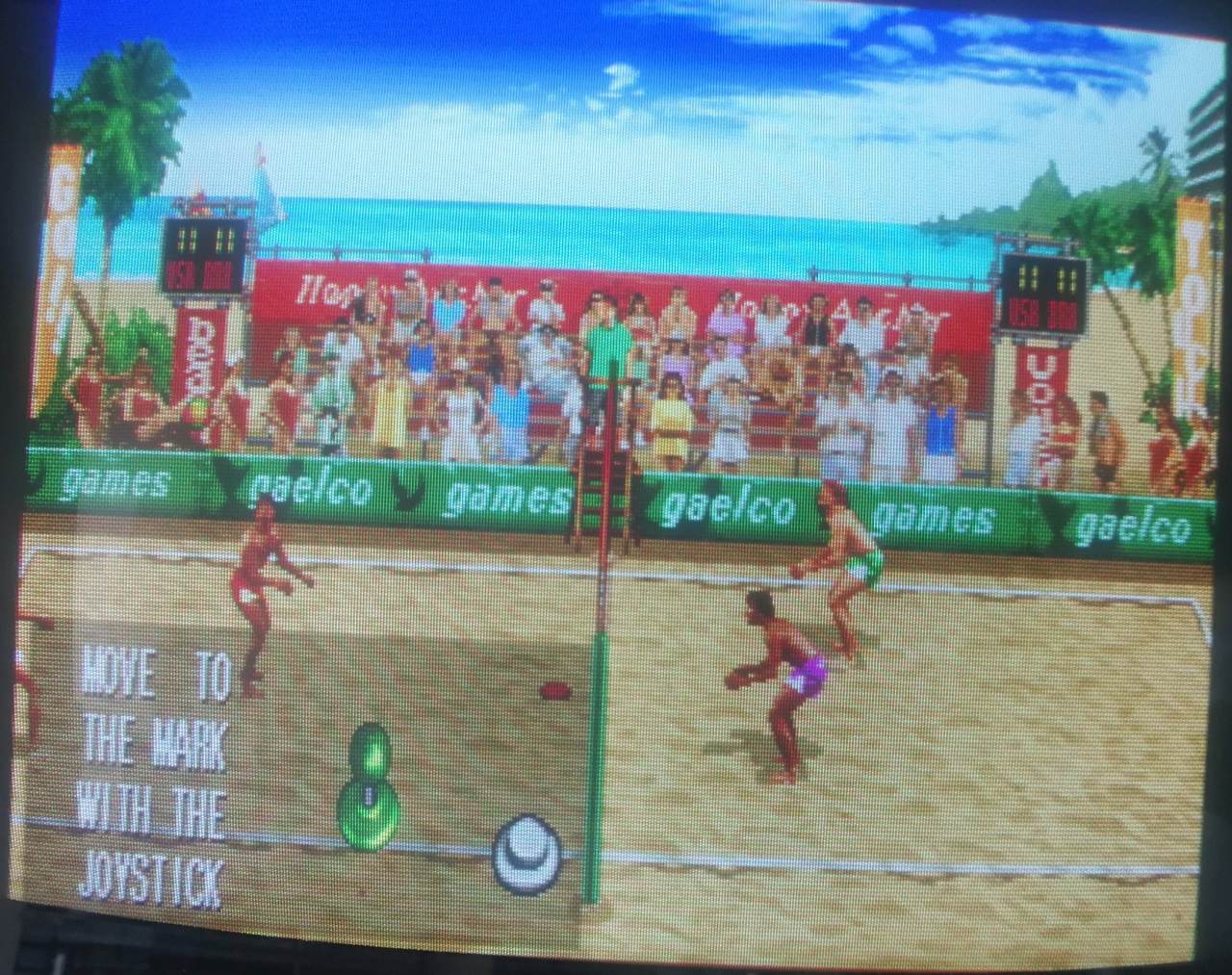

intro 1 -

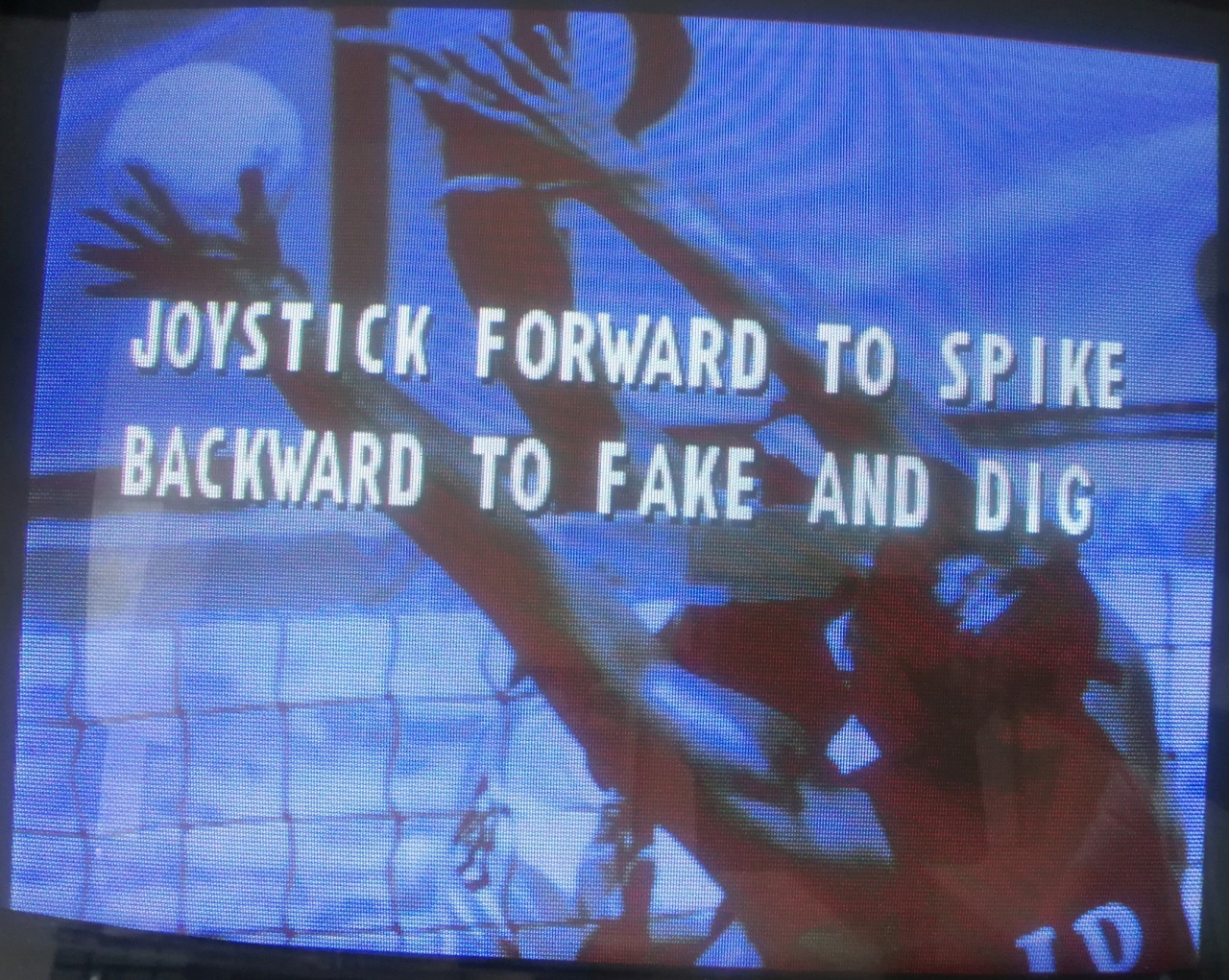

intro 2 -

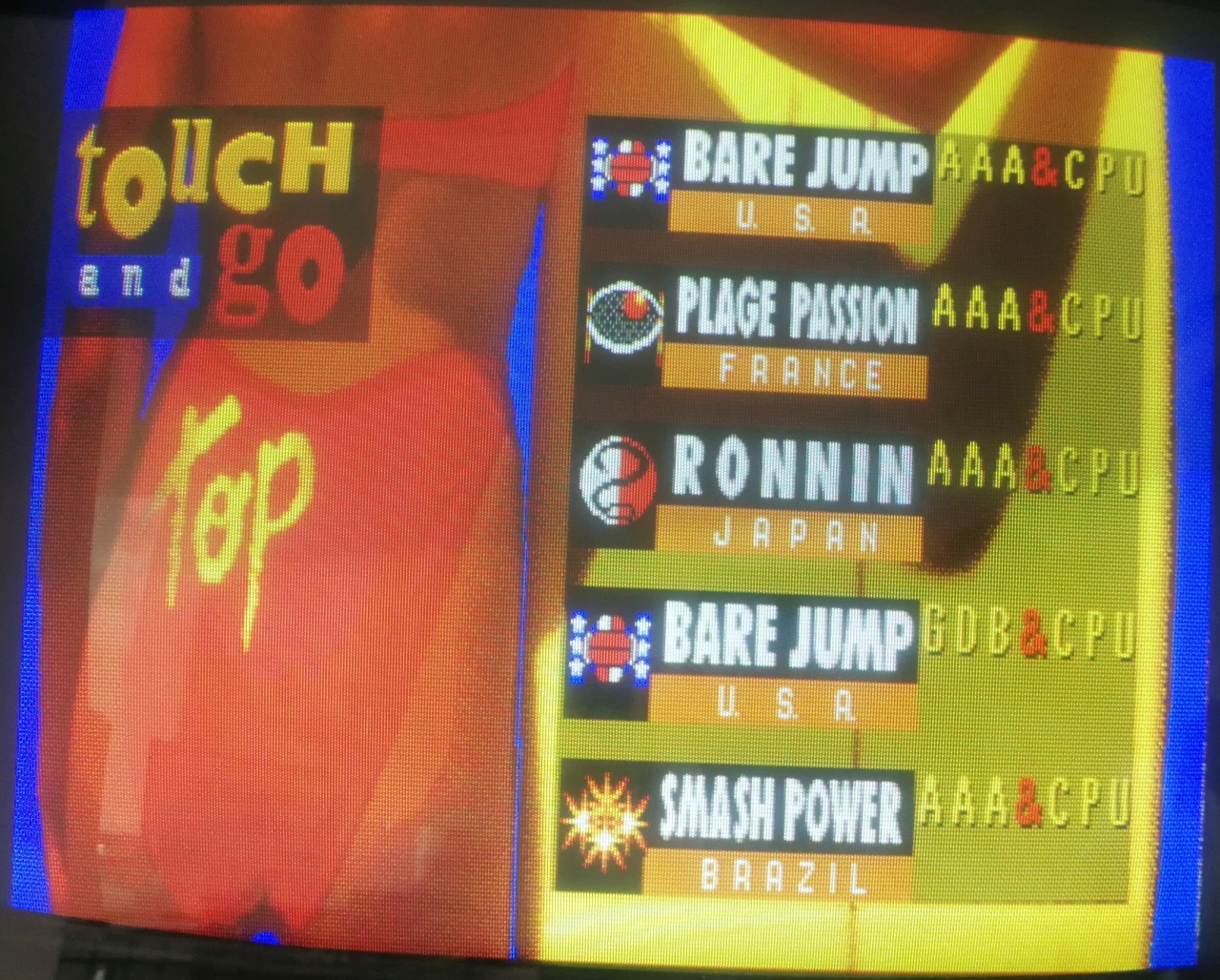

intro 3 -

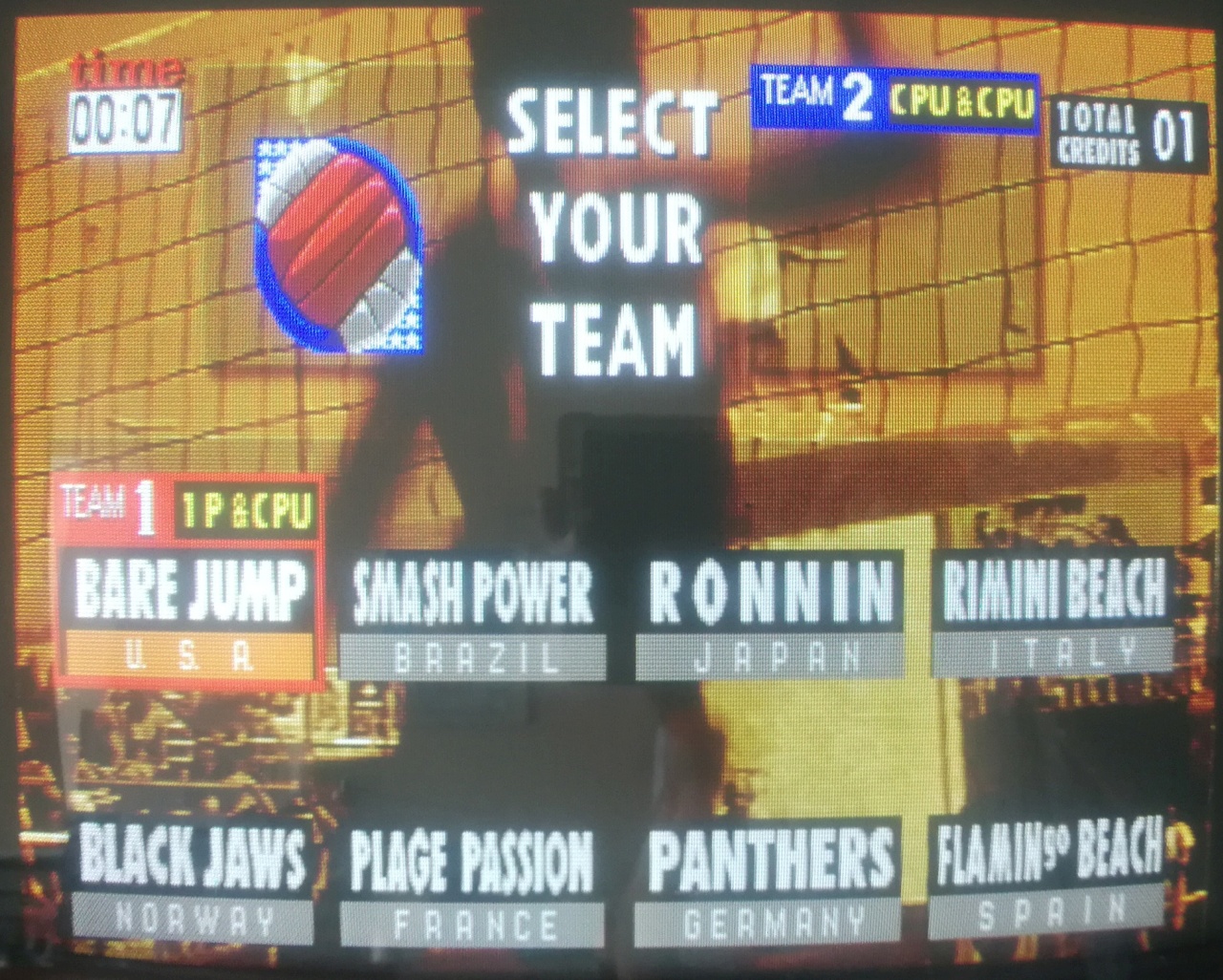

select
