World Kicks PCB (World, WKC2 Ver.A)

EMU Infos

dumper	Smitdogg, Rtw
date	29.06.2017
emulator	MAME 0.188
dev	MetalliC

PCB Infos

name	wldkickspw on Arcade Database
description	World Kicks PCB (World, WKC2 Ver.A)
year	2000.07.21
manufacturer	Namco

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	28MHz	osc1 (3j)

ROMs

QTY	Type	position	status
9x	MaskROM 128Mb TSOP48	MA3 - MA11	not dumped
2x	DA28F640J5	FL1, FL2	dumped

RAMs

QTY	Type	position
2x	IS61C256AH-15J	4p, 5p

PLDs

QTY	Type	position	status
2x	EPM7064S	NAODEC2A(1h), NAODEC1B(2k)	not dumped

Notes

It's a NAOMI cart.
Cart type: MASK B F2
Cart N°: 25509801 WKC2 Ver.A
Protection IC: SEGA 315-5881 (317-5040-COM)
Key: 0x052e2901
uses Namco V226 JVS I/O (not dumped) - "PCB" means upright version, uses analog button on control panel to kick the ball

Files

•

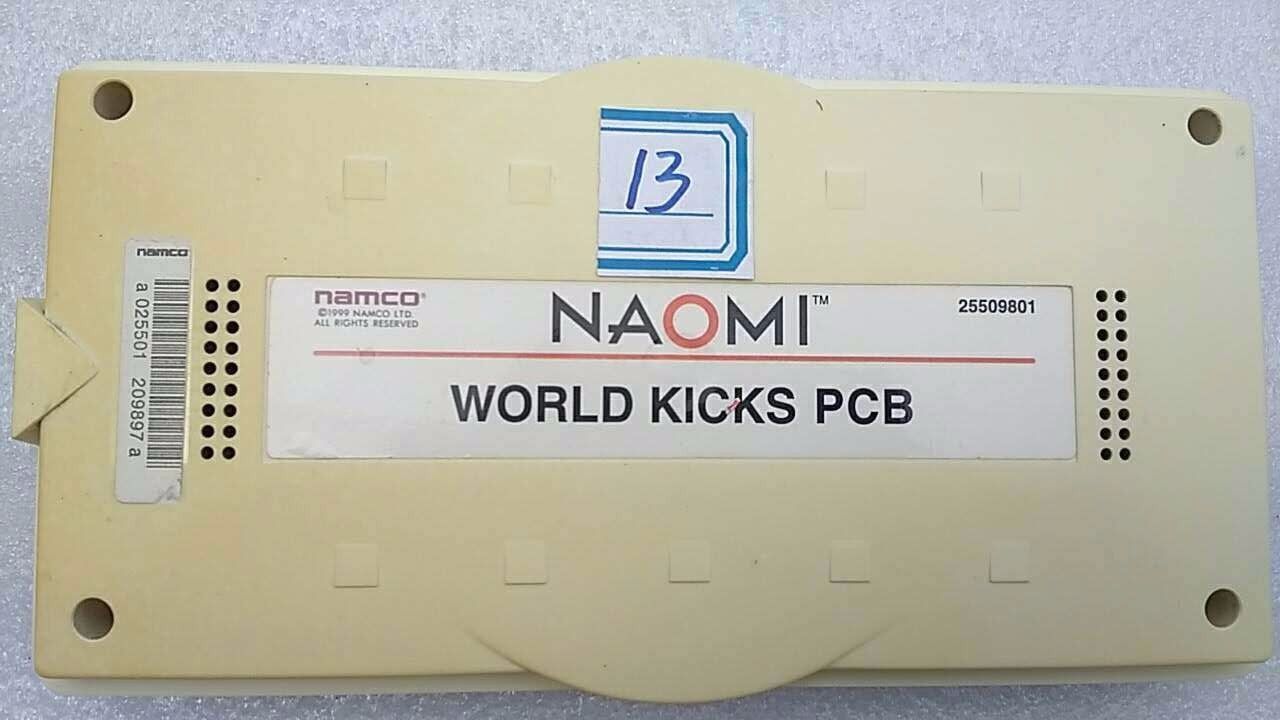

  cart
•

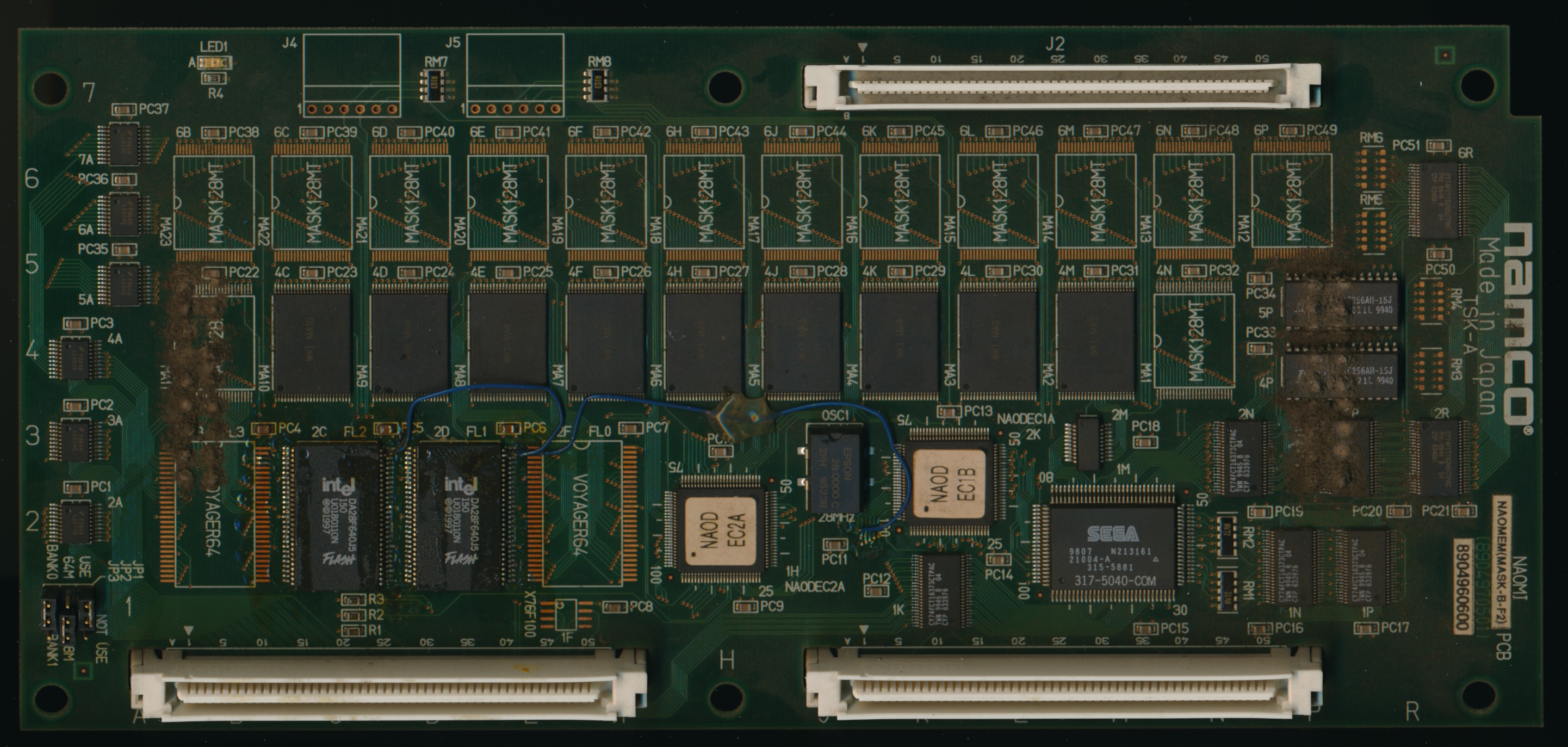

  PCB component side
•

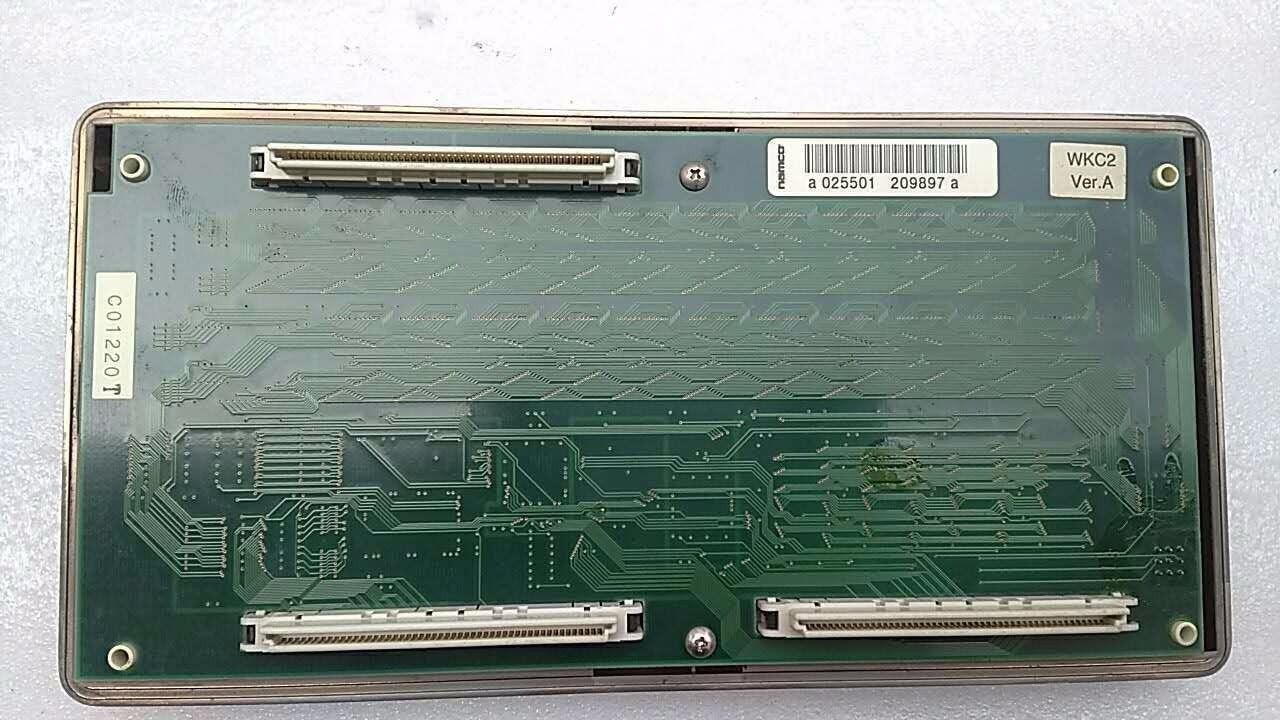

  PCB solder side
•

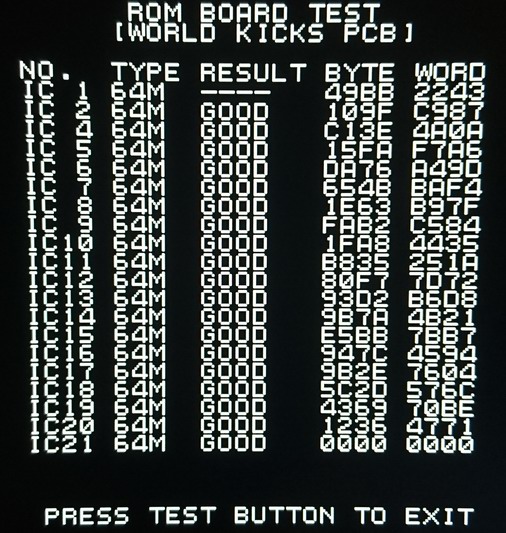

  ROM board test
