Mushiking The King Of Beetle (2K3 2ND Ver. 1.000-, China)

EMU Infos

dumper	Rtw, Jorge Valero
date	02/11/2021
emulator	MAME 0.238
dev	MetalliC

PCB Infos

name	mushikc on Arcade Database
description	Mushiking The King Of Beetle (2K3 2ND Ver. 1.000-, China)
year	2004
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	PIC16C621A		317-0437-COM.ic3	EPROM-Based 8-Bit CMOS Microcontroller

ROMs

QTY	Type	position	status
1x	XCF01SVG	ic4	not dumped
1x	S29GL512N10T	ic8	dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status
1x	XC3S50	ic2	not dumped

Notes

It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0157C
EPR.ic7: not present
IC4# is marked "18", requires 610-0669 barcode reader, 838-14245-92 "MAPLE/232C CONVERT BD" (MIE-based), 838-14243 "RFID CHIP R/W BD" and RFID chip

Files

•

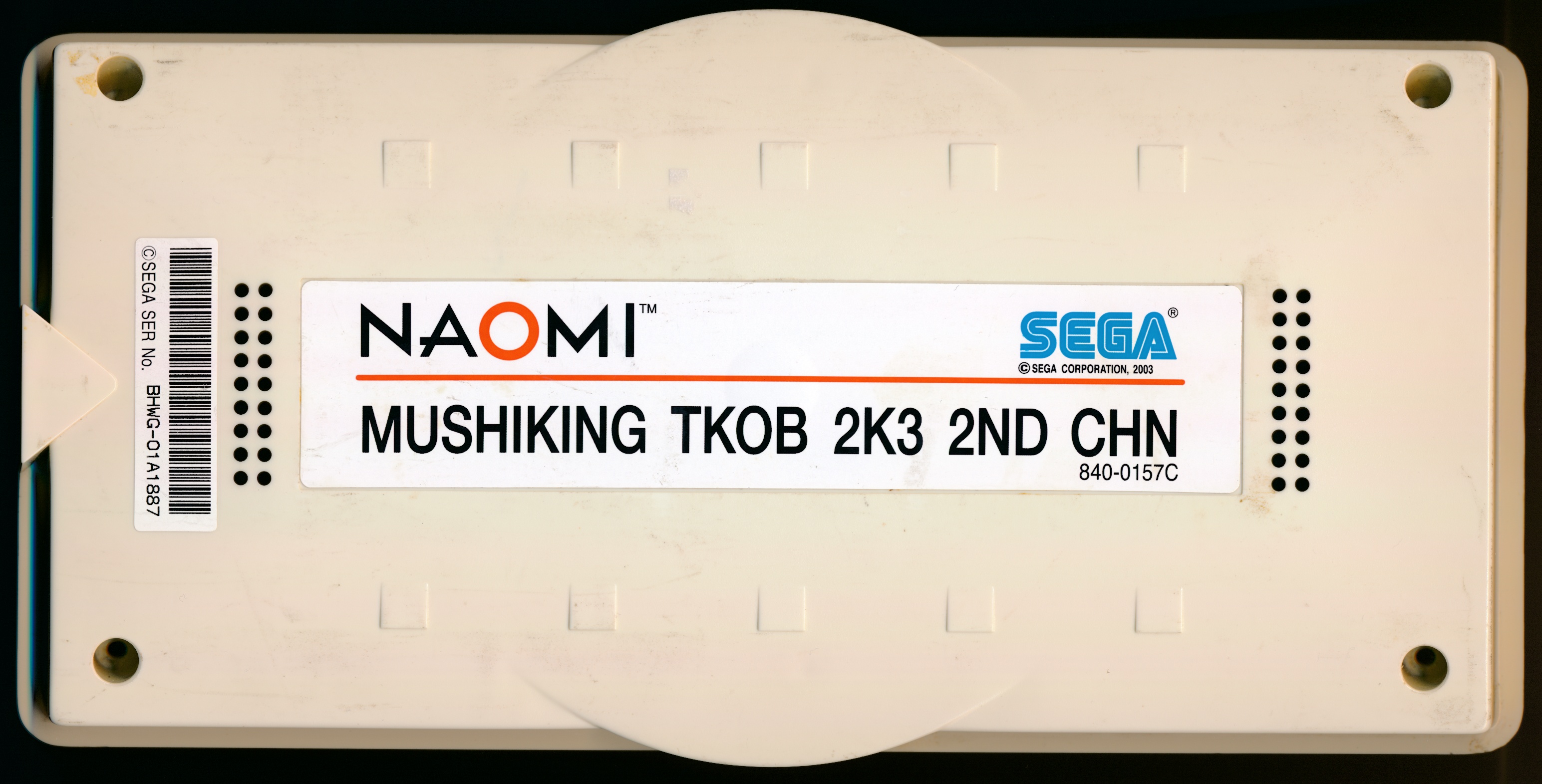

  Cart
•

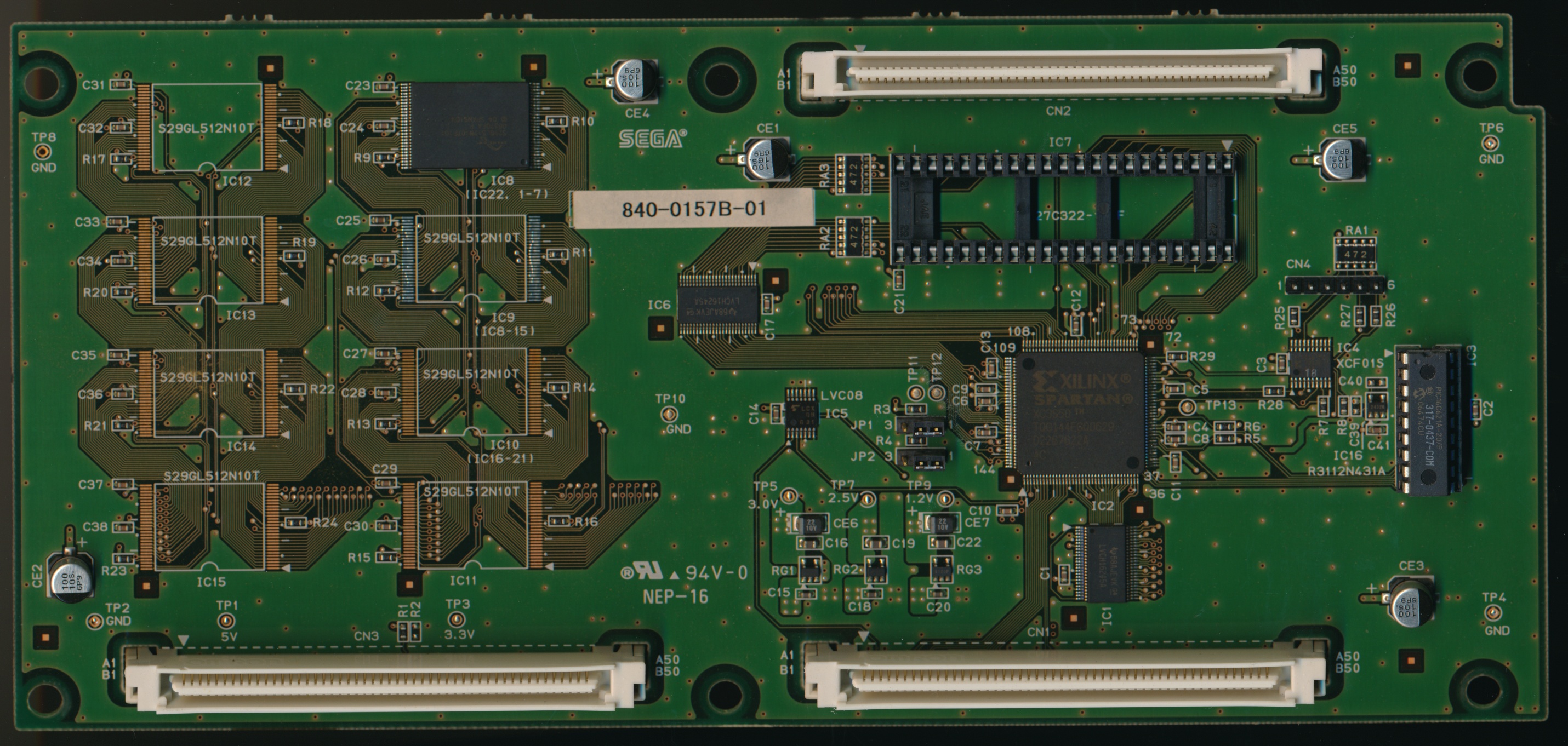

  PCB component side
•

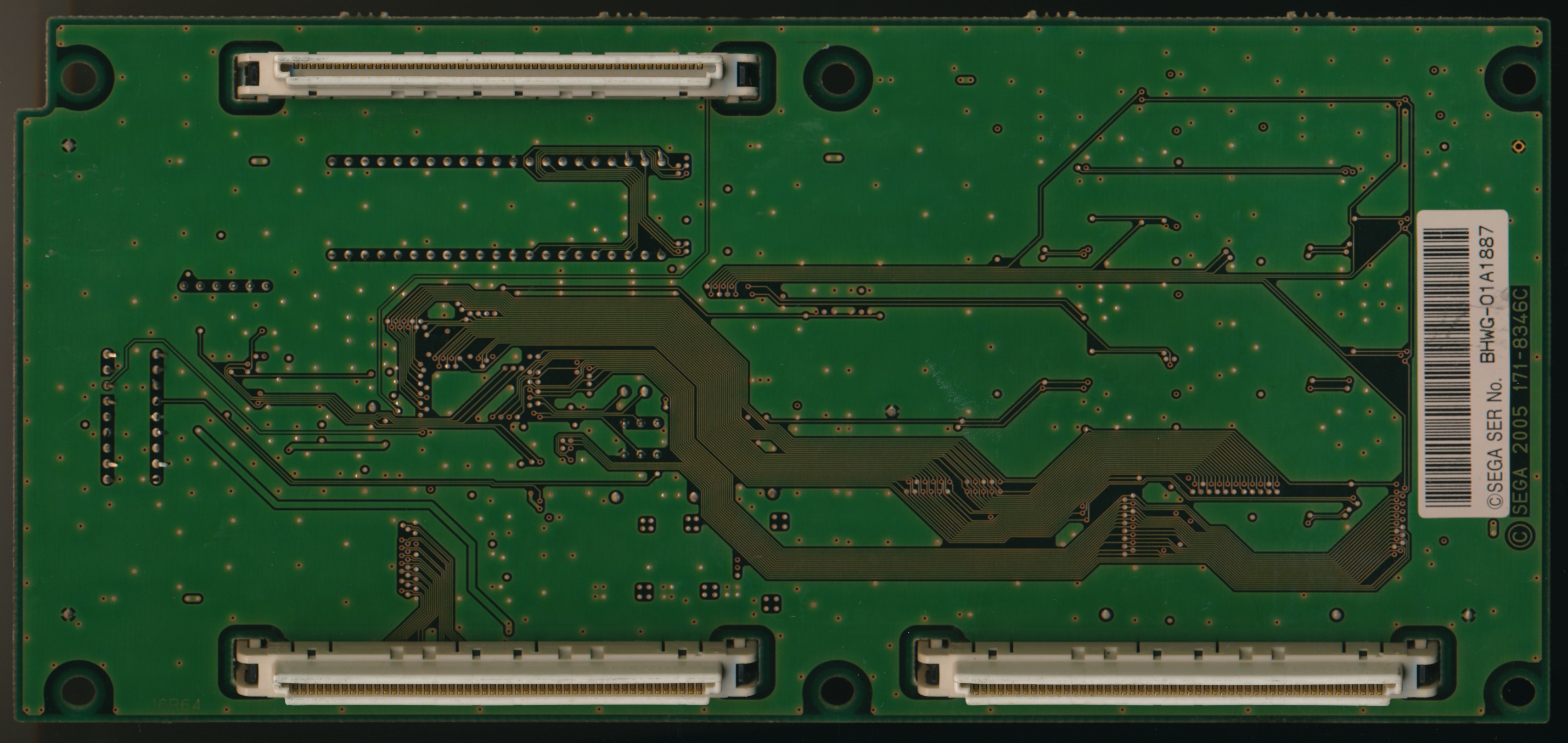

  PCB solder side
•

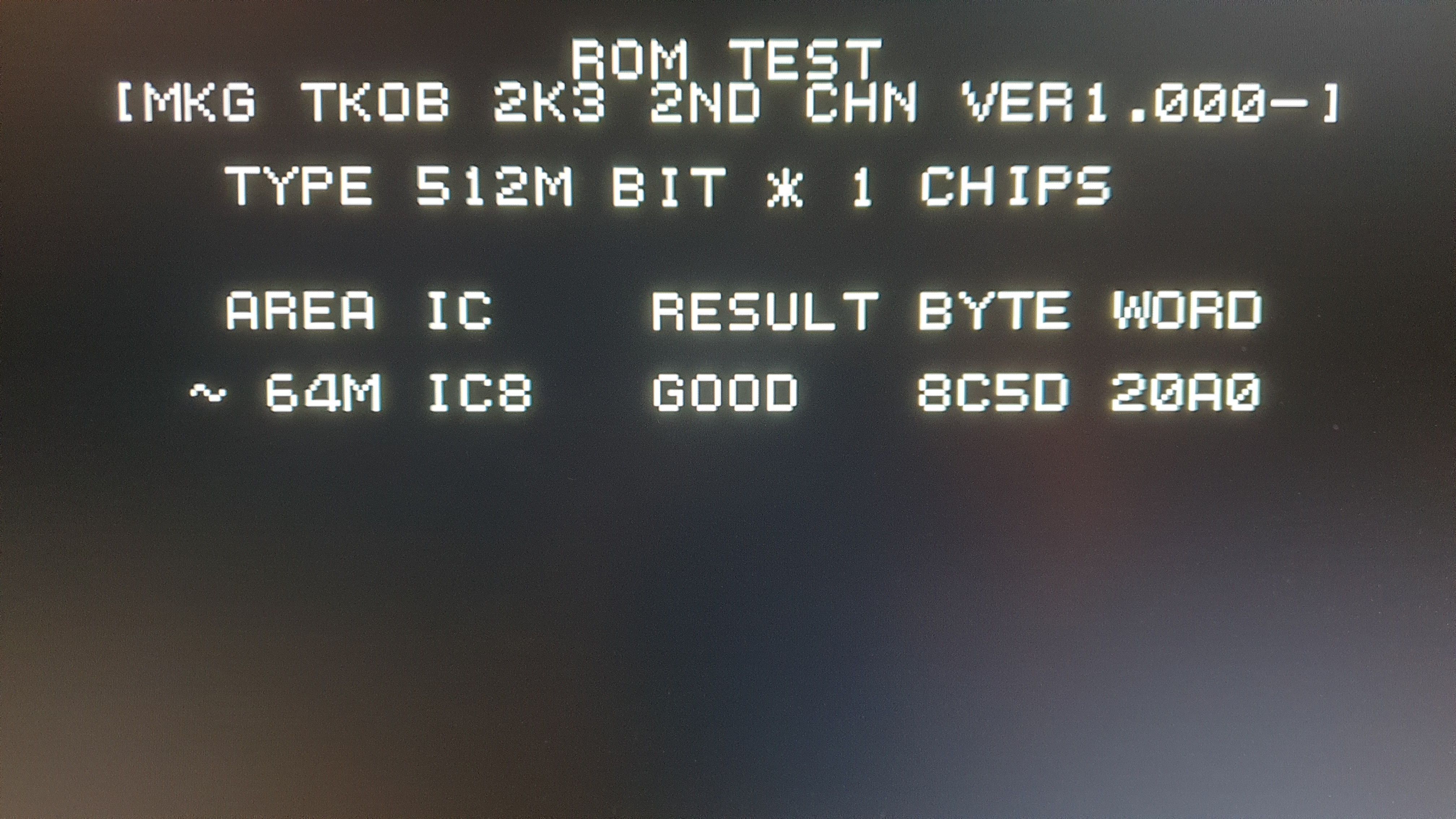

  ROM BOARD TEST
•
